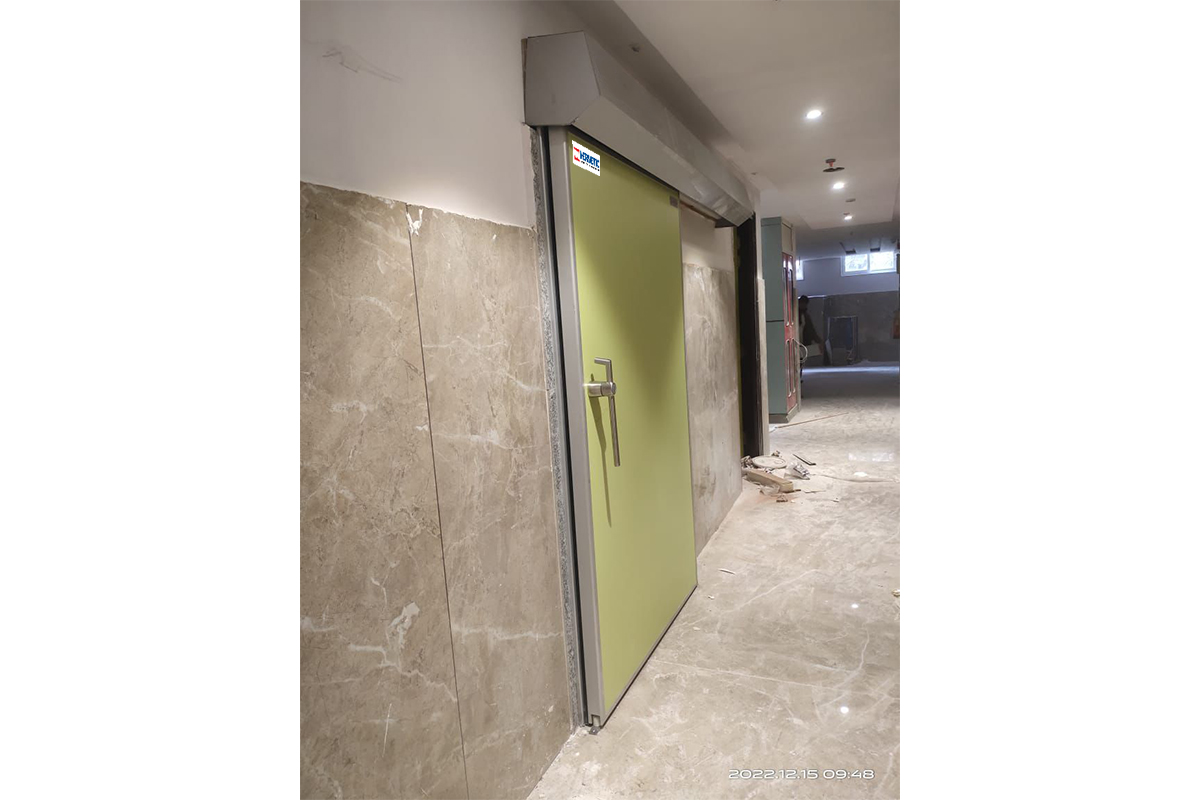

Anti-Radiation sliding doors are basically hermetically sealed doors with 2mm thick lead inside. It can be made of single leaf as well as double leaf. These doors are specially designed for rooms with radiation shielding requirements.

Anti-radiation sliding doors have 2mm thickness of lead lining inside that comply with AERB(Atomic Energy Regulatory Board) requirements for the X-Ray shielding doors. 3 sided aluminum wall frame also comes with 2 mm lead inlay. Anti-Radiation doors can also with stand up to 75Pa over pressure. At this pressure any leakage losses will still not be measurable due to the hermetic property of the door.

60 mm thick door core consists of 4 mm thick high pressure on laminate both sides, 2 mm thick lead lining and 50 mm thick high pressure injected polyurethane. The door also provides noise insulation up to 28db. Apart from 3tier EPDM sealing gasket for wall frames, a special 2tier bottom gasket is fixed on the lower part of the door blade to ensure perfect hermetic sealing.

As an option 10 mm thick lead glass having minimum lead capacity equivalent to 2.2mmpb with clear view of 300x300mm, sandwich type window There are many optional accessories that are available with this door i.e. lock, bigger size lead glass vision window, D-Handle & flush grip for full passage opening, kick plate and S .S. guard columns etc.

Applications: -

• X-Ray Rooms
• Fluoroscopy Rooms
• Radio Therapy Rooms
• Cath Labs
• Mammography Rooms
• Rooms With Radiation Equipment Inside
